What is the sensor size of the Leica V-LUX 2?

The Leica V-LUX 2 is a digital camera that has a 1/2.3-inch sensor at its core. This imager measures 6.17mm in width and 4.55mm in height, so that the total imaging area of the sensor amounts to 28 mm².

The V-LUX 2 provides an image resolution of 14 megapixels, based on 4 320 horizontal pixels and 3 240 vertical pixels.

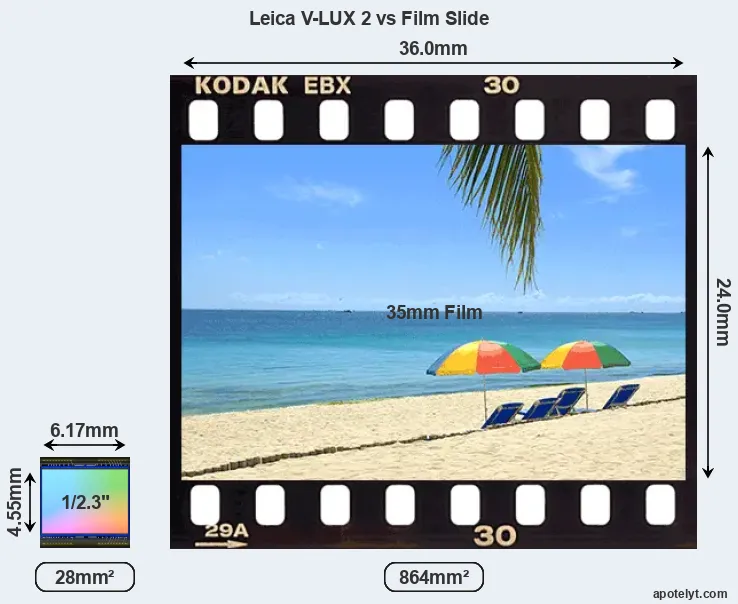

Sensor size comparison with a film slide

The sensor diagonal measures 7.7mm, which gives rise to a format factor (or crop factor) of 5.6. Hence, the Leica V-LUX 2 is a crop-sensor camera, as its sensor is smaller than a traditional 35mm film slide or negative.

Sensor specs and performance

The table below compares the sensor specs of the Leica V-LUX 2 to those of several similar cameras. The reported DXO values are indicators of the sensor's imaging quality (higher is better), covering color depth (DXO Portrait), dynamic range (DXO Landscape), and high-ISO noise (DXO Sports). Larger sensor cameras tend to outperform cameras of the same generation that are equipped with a smaller imager. On the other hand, larger sensors are more expensive and require bigger and heavier lenses than smaller light receptors.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Leica V-LUX 2	1/2.3	14.0	4320	3240	1080/60i	19.4	10.7	321	39
2.		Canon G1 X	1.5-inch	14.2	4352	3264	1080/24p	21.7	10.8	644	60
3.		Canon G1 X Mark II	1.5-inch	13.0	4160	3120	1080/30p	21.5	10.8	581	58
4.		Fujifilm X100	APS-C	12.2	4288	2848	720/30p	22.9	12.4	1001	73
5.		Leica V-LUX 1	1/1.8	10.0	3648	2736	480/30p	18.4	9.5	-727	29
6.		Leica V-LUX 3	1/2.3	12.0	4000	3000	1080/60p	19.7	11.0	430	42
7.		Leica V-LUX 4	1/2.3	12.0	4000	3000	1080/60p	19.8	11.1	501	43
8.		Leica X Typ 113	APS-C	16.1	4928	3264	1080/30p	23.6	12.8	1491	78
9.		Nikon D5100	APS-C	16.1	4928	3264	1080/30p	23.5	13.6	1183	80
10.		Panasonic FZ100	1/2.3	14.0	4320	3240	1080/60i	19.4	10.7	306	39
11.		Panasonic FZ150	1/2.3	12.0	4000	3000	1080/60p	19.4	10.9	132	40
Note: DXO values in italics represent estimates based on sensor size and age.

In the United States, the V-LUX 2 was initially launched in September 2010 at a price of $849.

Check V-LUX 2 offers at
ebay.com

Camera to camera comparisons

In case you would like to check on the differences and similarities with other camera models, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
