Olympus Stylus 1s vs Samsung NX500

The Olympus Stylus 1s and the Samsung NX500 are two digital cameras that were officially introduced, respectively, in April 2015 and February 2015. The Stylus 1s is a fixed lens compact, while the NX500 is a mirrorless interchangeable lens camera. The cameras are based on a 1/1.7-inch (Stylus 1s) and an APS-C (NX500) sensor. The Olympus has a resolution of 11.8 megapixels, whereas the Samsung provides 28 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Olympus Stylus 1s		Samsung NX500
Fixed lens compact camera		Mirrorless system camera
28-300mm f/2.8		Samsung NX mount lenses
11.8 MP – 1/1.7" sensor		28 MP – APS-C sensor
1080/30p Video		4K/30p Video
ISO 100-12,800		ISO 100-25,600 (100 - 51,200)
Electronic viewfinder (1440k dots)		No viewfinder, LCD framing
3.0" LCD – 1040k dots		3.0" LCD – 1036k dots
Tilting touchscreen		Tilting touchscreen
7 shutter flaps per second		9 shutter flaps per second
450 shots per battery charge		370 shots per battery charge
116 x 87 x 57 mm, 402 g		120 x 64 x 43 mm, 287 g

Check Stylus 1s offers at
ebay.com
Check NX500 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus Stylus 1s and the Samsung NX500? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

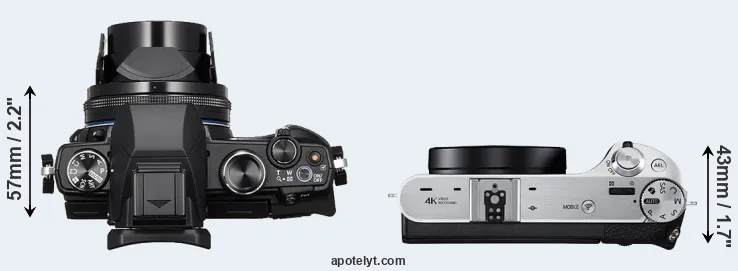

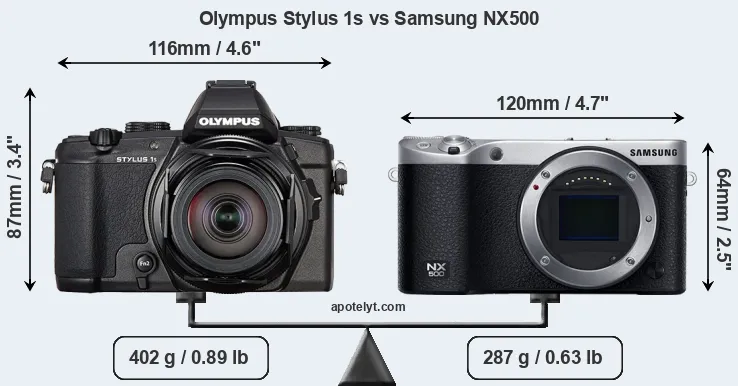

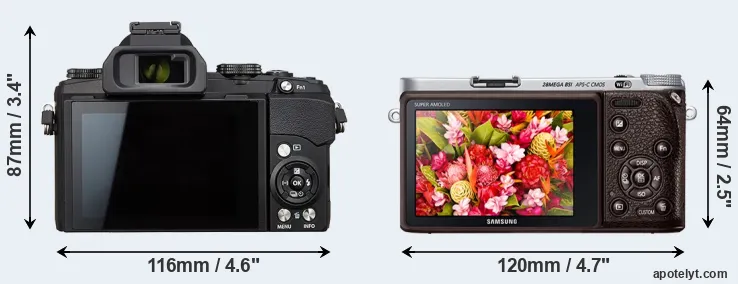

The side-by-side display below illustrates the physical size and weight of the Olympus Stylus 1s and the Samsung NX500. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Samsung NX500 is notably smaller (24 percent) than the Olympus Stylus 1s. In this context, it is worth noting that neither the Stylus 1s nor the NX500 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the Stylus 1s has a lens built in, whereas the NX500 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.

The power pack in the NX500 can be charged via the USB port, which can be very convenient when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Olympus Stylus 1s	116 mm	87 mm	57 mm	402 g	450	n	Apr 2015	US$ 699	ebay.com
2.		Samsung NX500	120 mm	64 mm	43 mm	287 g	370	n	Feb 2015	US$ 799	ebay.com
3.		Canon G1 X Mark II	116 mm	74 mm	66 mm	553 g	240	n	Feb 2014	US$ 799	ebay.com
4.		Canon G5 X	112 mm	76 mm	44 mm	353 g	210	n	Oct 2015	US$ 799	ebay.com
5.		Canon M3	111 mm	68 mm	44 mm	366 g	250	n	Feb 2015	US$ 679	ebay.com
6.		Fujifilm X10	117 mm	70 mm	57 mm	350 g	270	n	Sep 2011	US$ 599	ebay.com
7.		Fujifilm X20	117 mm	70 mm	57 mm	353 g	270	n	Jan 2013	US$ 599	ebay.com
8.		Fujifilm X30	119 mm	72 mm	60 mm	423 g	470	n	Aug 2014	US$ 599	ebay.com
9.		Fujifilm X70	113 mm	64 mm	44 mm	340 g	330	n	Jan 2016	US$ 799	ebay.com
10.		Leica D-LUX Typ 109	118 mm	66 mm	55 mm	405 g	300	n	Sep 2014	US$ 1 195	ebay.com
11.		Nikon D5500	124 mm	97 mm	70 mm	470 g	820	n	Jan 2015	US$ 899	ebay.com
12.		Nikon D5600	124 mm	97 mm	70 mm	465 g	970	n	Nov 2016	US$ 699	ebay.com
13.		Olympus E-420	130 mm	91 mm	53 mm	440 g	500	n	Mar 2008	US$ 599	ebay.com
14.		Olympus Stylus 1	116 mm	87 mm	57 mm	402 g	410	n	Oct 2013	US$ 699	ebay.com
15.		Panasonic LX100	115 mm	66 mm	55 mm	393 g	300	n	Sep 2014	US$ 899	ebay.com
16.		Ricoh GR II	117 mm	63 mm	35 mm	251 g	320	n	Jun 2015	US$ 699	ebay.com
17.		Sony A6000	120 mm	67 mm	45 mm	344 g	360	n	Feb 2014	US$ 599	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The Stylus 1s was launched at a lower price than the NX500, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Olympus Stylus 1s features a 1/1.7-inch sensor and the Samsung NX500 an APS-C sensor. The sensor area in the NX500 is 758 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 4.5 and 1.5. The sensor in the Stylus 1s has a native 4:3 aspect ratio, while the one in the NX500 offers a 3:2 aspect.

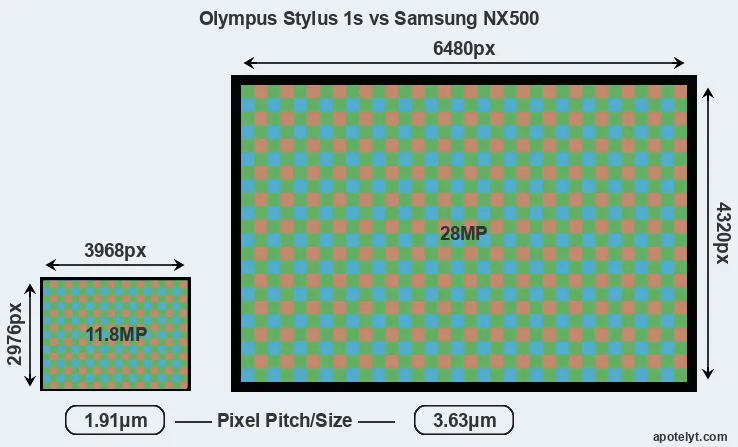

With 28MP, the NX500 offers a higher resolution than the Stylus 1s (11.8MP), but the NX500 nevertheless has larger individual pixels (pixel pitch of 3.63μm versus 1.91μm for the Stylus 1s) due to its larger sensor. It is noteworthy in this context that the two cameras were released in close succession, so that their sensors are from the same technological generation. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The resolution advantage of the Samsung NX500 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the NX500 for good quality output (200 dots per inch) amounts to 32.4 x 21.6 inches or 82.3 x 54.9 cm, for very good quality (250 dpi) 25.9 x 17.3 inches or 65.8 x 43.9 cm, and for excellent quality (300 dpi) 21.6 x 14.4 inches or 54.9 x 36.6 cm. The corresponding values for the Olympus Stylus 1s are 19.8 x 14.9 inches or 50.4 x 37.8 cm for good quality, 15.9 x 11.9 inches or 40.3 x 30.2 cm for very good quality, and 13.2 x 9.9 inches or 33.6 x 25.2 cm for excellent quality prints.

The NX500 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Olympus Stylus 1s has a native sensitivity range from ISO 100 to ISO 12800. The corresponding ISO settings for the Samsung NX500 are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 100-51200.

Technology-wise, both cameras are equipped with BSI-CMOS (Backside Illuminated Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Olympus Stylus 1s	1/1.7	11.8	3968	2976	1080/30p	20.2	11.3	-111	47
2.		Samsung NX500	APS-C	28.0	6480	4320	4K/30p	24.8	13.9	1379	87
3.		Canon G1 X Mark II	1.5-inch	13.0	4160	3120	1080/30p	21.5	10.8	581	58
4.		Canon G5 X	1-inch	20.0	5472	3648	1080/60p	21.4	12.3	471	62
5.		Canon M3	APS-C	24.0	6000	4000	1080/30p	22.8	11.8	1169	72
6.		Fujifilm X10	2/3	12.0	4000	3000	1080/30p	20.5	11.3	245	50
7.		Fujifilm X20	2/3	12.0	4000	3000	1080/60p	20.1	10.9	-462	46
8.		Fujifilm X30	2/3	12.0	4000	3000	1080/60p	20.4	11.2	-312	49
9.		Fujifilm X70	APS-C	16.0	4896	3264	1080/60p	23.7	13.0	1608	80
10.		Leica D-LUX Typ 109	Four Thirds	12.7	4112	3088	4K/30p	22.4	12.1	607	67
11.		Nikon D5500	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1438	84
12.		Nikon D5600	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1306	84
13.		Olympus E-420	Four Thirds	10.0	3648	2736	none	21.5	10.4	527	56
14.		Olympus Stylus 1	1/1.7	11.8	3968	2976	1080/30p	20.7	11.6	179	51
15.		Panasonic LX100	Four Thirds	12.7	4112	3088	4K/30p	22.3	12.5	553	67
16.		Ricoh GR II	APS-C	16.1	4928	3264	1080/30p	23.6	13.7	1078	80
17.		Sony A6000	APS-C	24.0	6000	4000	1080/60p	24.1	13.1	1347	82
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the NX500 provides a better video resolution than the Stylus 1s. It can shoot movie footage at 4K/30p, while the Olympus is limited to 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the Stylus 1s has an electronic viewfinder (1440k dots), which can be very helpful when shooting in bright sunlight. In contrast, the NX500 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Olympus Stylus 1s, the Samsung NX500, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Olympus Stylus 1s	1440	n	3.0 / 1040	tilting	Y	1/2000s	7.0/s	Y	Y
2.		Samsung NX500	none	n	3.0 / 1036	tilting	Y	1/6000s	9.0/s	Y	n
3.		Canon G1 X Mark II	optional	n	3.0 / 1040	tilting	Y	1/4000s	5.2/s	Y	Y
4.		Canon G5 X	2360	n	3.0 / 1040	swivel	Y	1/2000s	5.9/s	Y	Y
5.		Canon M3	optional	n	3.0 / 1040	tilting	Y	1/4000s	4.2/s	Y	n
6.		Fujifilm X10	optical	n	2.8 / 460	fixed	n	1/4000s	10.0/s	Y	Y
7.		Fujifilm X20	optical	n	2.8 / 460	fixed	n	1/4000s	12.0/s	Y	Y
8.		Fujifilm X30	2360	n	3.0 / 920	tilting	n	1/4000s	12.0/s	Y	Y
9.		Fujifilm X70	optional	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	n
10.		Leica D-LUX Typ 109	2764	n	3.0 / 921	fixed	n	1/4000s	11.0/s	n	Y
11.		Nikon D5500	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
12.		Nikon D5600	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
13.		Olympus E-420	optical	n	2.7 / 215	fixed	n	1/4000s	3.5/s	Y	n
14.		Olympus Stylus 1	1440	n	3.0 / 1040	tilting	Y	1/2000s	7.0/s	Y	Y
15.		Panasonic LX100	2764	n	3.0 / 921	fixed	n	1/4000s	11.0/s	n	Y
16.		Ricoh GR II	optional	n	3.0 / 1230	fixed	n	1/4000s	4.0/s	Y	n
17.		Sony A6000	1440	n	3.0 / 922	tilting	n	1/4000s	11.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The Olympus Stylus 1s and the Samsung NX500 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the Stylus 1s and the NX500 write their files to SDXC cards. The NX500 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the Stylus 1s cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus Stylus 1s and Samsung NX500 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Olympus Stylus 1s	Y	stereo / mono	-	-	micro	2.0	Y	-	-
2.		Samsung NX500	Y	stereo / mono	-	-	micro	2.0	Y	Y	Y
3.		Canon G1 X Mark II	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
4.		Canon G5 X	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
5.		Canon M3	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
6.		Fujifilm X10	Y	stereo / mono	-	-	mini	2.0	-	-	-
7.		Fujifilm X20	Y	stereo / mono	-	-	micro	2.0	-	-	-
8.		Fujifilm X30	Y	stereo / mono	-	-	micro	2.0	Y	-	-
9.		Fujifilm X70	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
10.		Leica D-LUX Typ 109	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
11.		Nikon D5500	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
12.		Nikon D5600	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
13.		Olympus E-420	Y	- / -	-	-	-	2.0	-	-	-
14.		Olympus Stylus 1	Y	stereo / mono	-	-	micro	2.0	Y	-	-
15.		Panasonic LX100	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
16.		Ricoh GR II	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
17.		Sony A6000	Y	stereo / mono	-	-	micro	2.0	Y	Y	-

Both the Stylus 1s and the NX500 have been discontinued, but can regularly be found used on ebay. Neither of the two has a direct successor, so they represent the end of the respective camera lines from Olympus and Samsung. Further information on the features and operation of the Stylus 1s and NX500 can be found, respectively, in the Olympus Stylus 1s Manual (free pdf) or the online Samsung NX500 Manual.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Olympus Stylus 1s and the Samsung NX500? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Arguments in favor of the Olympus Stylus 1s:

• Easier framing: Has an electronic viewfinder for image composition and settings control.
• Ready to shoot: Has a lens built-in, whereas the NX500 requires a separate lens.
• Longer lasting: Can take more shots (450 versus 370) on a single battery charge.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.

Advantages of the Samsung NX500:

• More detail: Has more megapixels (28 vs 11.8MP), which boosts linear resolution by 57%.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Better video: Provides higher definition movie capture (4K/30p vs 1080/30p).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/6000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (9 vs 7 flaps/sec) to capture the decisive moment.
• More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
• More compact: Is smaller (120x64mm vs 116x87mm) and will fit more readily into a bag.
• Easier travel charging: Can be conveniently charged via its USB port.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.

If the count of individual advantages (bullet points above) is taken as a guide, the NX500 is the clear winner of the contest (16 : 5 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Olympus Stylus 1s and the Samsung NX500 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the Stylus 1s or the NX500 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Olympus Stylus 1s	..	..	..	..	..	..	Apr 2015	US$ 699	ebay.com
2.		Samsung NX500	4.5/5	..	..	81/100	5/5	4.5/5	Feb 2015	US$ 799	ebay.com
3.		Canon G1 X Mark II	3/5	+	..	77/100	4/5	4.5/5	Feb 2014	US$ 799	ebay.com
4.		Canon G5 X	5/5	+ +	..	78/100	4.5/5	4.5/5	Oct 2015	US$ 799	ebay.com
5.		Canon M3	4/5	o	..	75/100	4.5/5	4/5	Feb 2015	US$ 679	ebay.com
6.		Fujifilm X10	..	..	..	76/100	4/5	4.5/5	Sep 2011	US$ 599	ebay.com
7.		Fujifilm X20	4/5	+ +	..	77/100	4.5/5	5/5	Jan 2013	US$ 599	ebay.com
8.		Fujifilm X30	4/5	..	..	76/100	4.5/5	4.5/5	Aug 2014	US$ 599	ebay.com
9.		Fujifilm X70	4.5/5	..	..	76/100	4.5/5	4.5/5	Jan 2016	US$ 799	ebay.com
10.		Leica D-LUX Typ 109	..	..	..	..	4.5/5	4.5/5	Sep 2014	US$ 1 195	ebay.com
11.		Nikon D5500	5/5	+	..	79/100	4.5/5	4.5/5	Jan 2015	US$ 899	ebay.com
12.		Nikon D5600	4/5	..	4/5	79/100	4.5/5	4/5	Nov 2016	US$ 699	ebay.com
13.		Olympus E-420	..	85/100	..	+ +	4/5	4.5/5	Mar 2008	US$ 599	ebay.com
14.		Olympus Stylus 1	..	+ +	..	..	4.5/5	4.5/5	Oct 2013	US$ 699	ebay.com
15.		Panasonic LX100	5/5	+ +	..	85/100	5/5	5/5	Sep 2014	US$ 899	ebay.com
16.		Ricoh GR II	..	..	..	..	4.5/5	4.5/5	Jun 2015	US$ 699	ebay.com
17.		Sony A6000	5/5	+	4.5/5	80/100	4.5/5	5/5	Feb 2014	US$ 599	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
